MOD Easy 2 Assembly & User Guide
Overview
In this article, you will find links to assemble your MOD Easy 2 (with or without the sidecar) and learn key tips and tricks to get the most out of your ride.
Difficulty
★★☆ Medium
Estimated Time
60–120 Min
Before You Start
Tools you will need
Adjustable Wrench (included in your bike tool kit)
Multitool with Allen Wrenches (included in your bike tool kit)
Bolt Tray (or any small container for screws)
Pliers (Purchase on Amazon)
Cable Snips (Purchase on Amazon)
Preparation
Set up a large, stable workspace.
Unbox the bike but keep packing materials for 14 days.
Review the links below for the correct guide before starting.
Steps
Step 1: Follow the Assembly Guide
Follow the step‑by‑step instructions in our official guides:
NOTE: We strongly recommend taking your bike to your local bike shop or booking a mobile bike technician through Velofix to get your bike professionally assembled.
Step 2: Learn the Basics
Now that your bike is assembled and ready to ride, take a look at our User Guide to learn the basics and get the most out of your ride!
Step 3: Tips & Tricks to Get the most from your MOD BIKES
Here are some Tips & Tricks to get even more out of your journey.

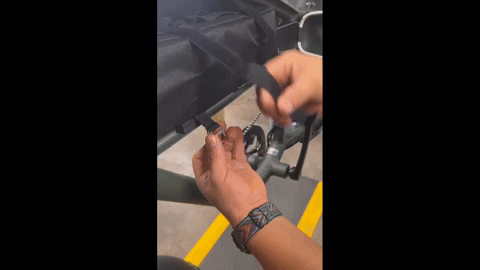

Secure Your Battery: Single loop wrap your battery straps! Your Easy battery comes with straps to hold the battery in place. DO NOT WEAVE THE STRAPS THROUGH THE BRACKETS! A single loop will allow for a much tighter hold and security for the battery when you're riding.

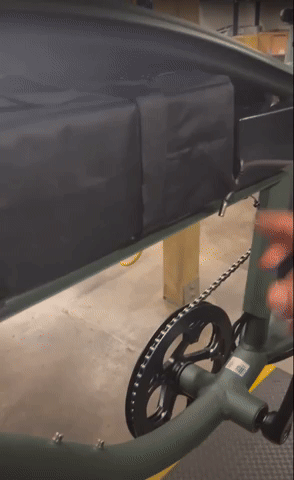

Space Between Components: The security of your battery will minimize the shifting and sliding of your battery during rides and will not crush the cable connections and controller.

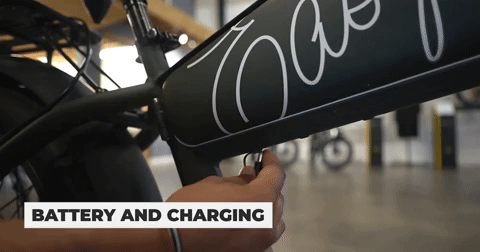

Charging Port: The MOD Easy and Ape Hanger both contain a charging port under the tank, so you do not need to remove the battery every time you need to charge.

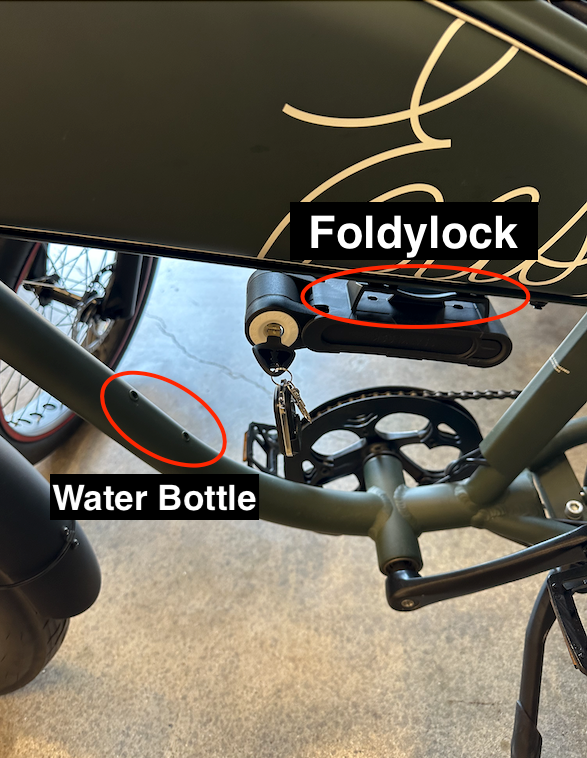

Mounting Locations: The Easy 2 and Ape Hanger have pre-drilled mounting locations specifically for both a water bottle and a foldylock.

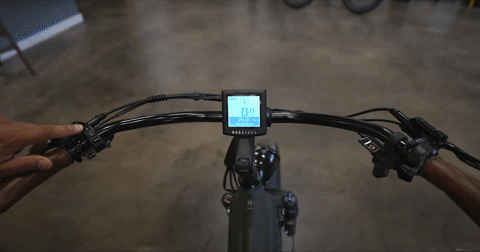

Headlights: Hold the + button for 2-3 seconds to turn your headlights and tail lights on and off.
Version Number: The version number of your bike can be found on the rear of your seat post. If your bike does not have a number, it is version 01.

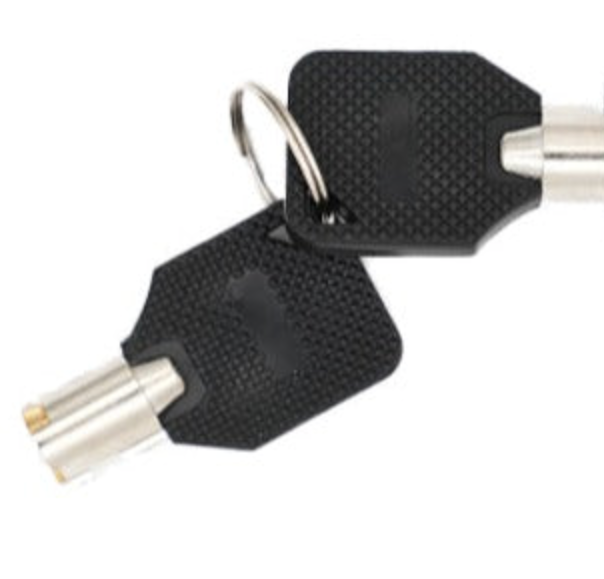

Keys: Don't lose your Easy keys! They are necessary for opening the tank, which contains the battery and controller.

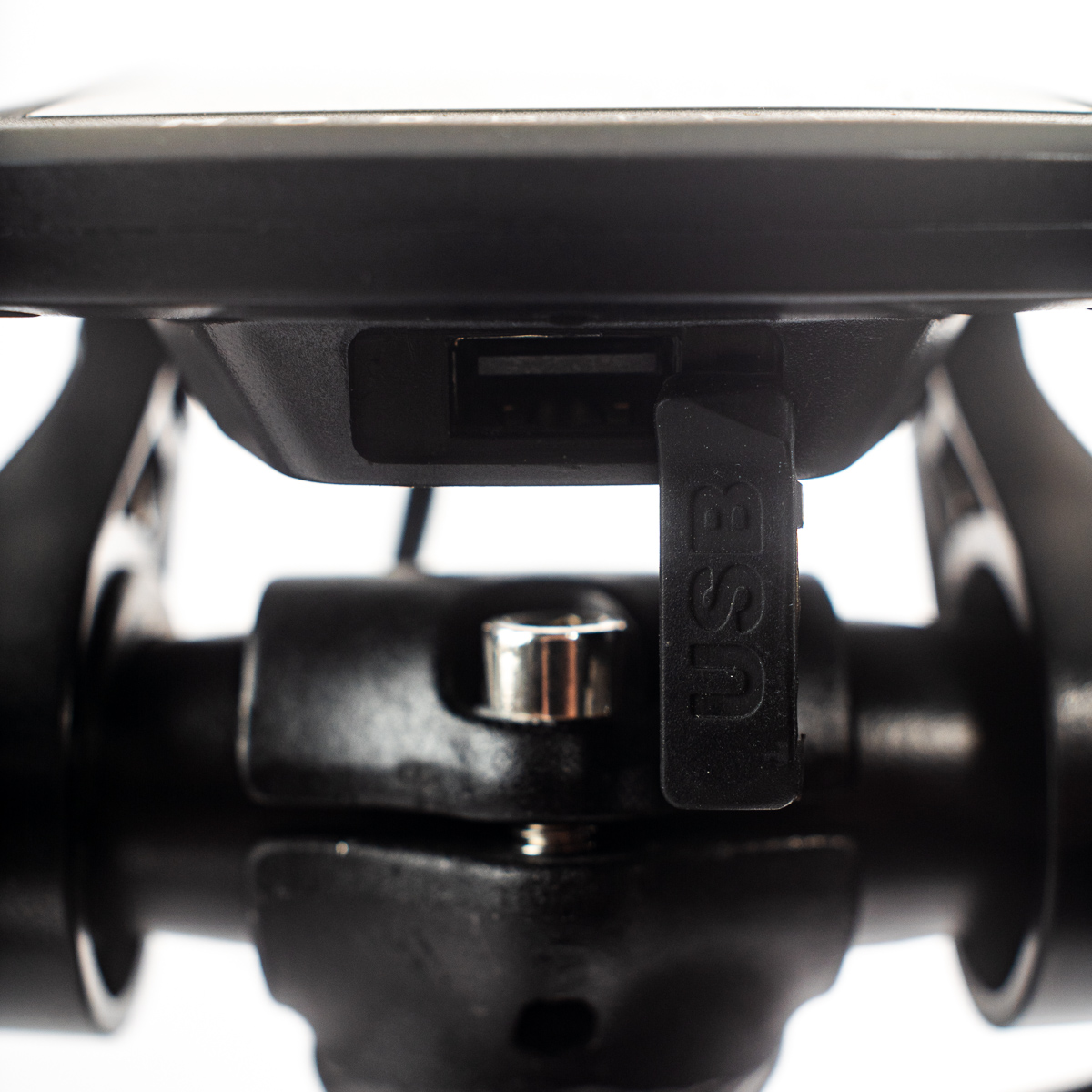

USB Port: There's a hidden USB port at the bottom of the display screen and will charge certain devices on your ride!

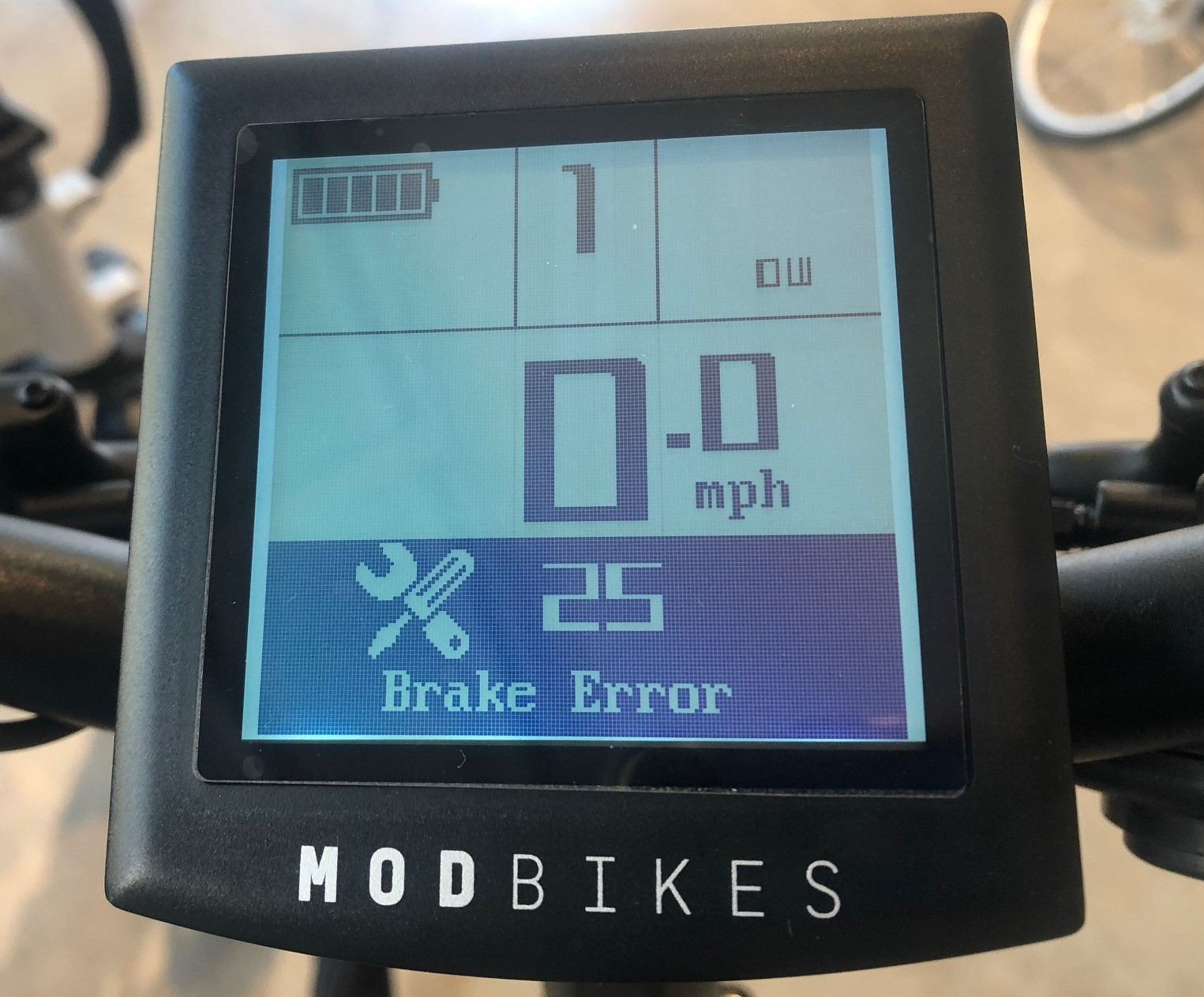

Error Code 25: Be sure not to hold the brakes when turning the bike on! This will activate Error code 25 on your display.

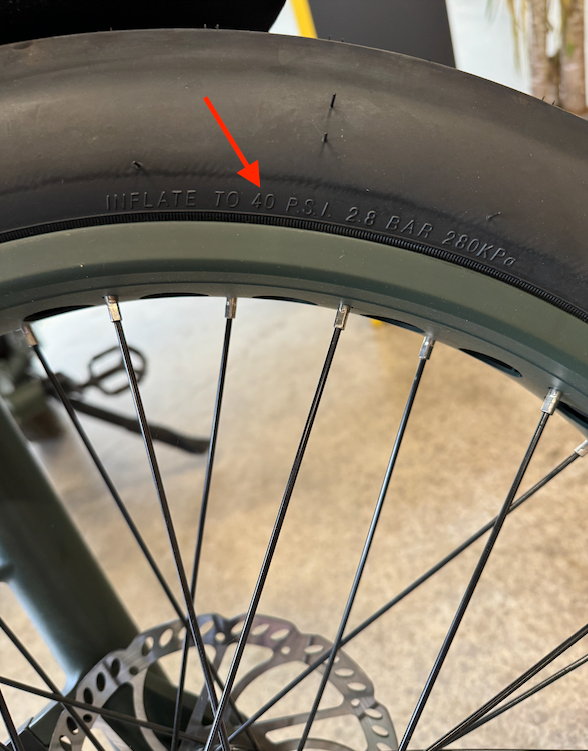

PSI: The proper PSI can be found on the side of your tire. This will let you know the correct pressure to inflate your tire to.
Troubleshooting
Loose handlebars or stem → Tighten stem bolts securely using a torque wrench (typically 5–7 Nm) and confirm alignment with the front wheel.
Brakes rubbing or misaligned → Loosen the caliper bolts, squeeze the brake lever to center the caliper, then retighten bolts while holding the lever.
Pedals won’t thread in or feel stuck → Confirm you're installing the correct pedal on the correct side (L/R marked). Thread in by hand before tightening with a wrench.
Chain falls off or shifts poorly → Check derailleur alignment, limit screws, and chain routing. Adjust cable tension using the barrel adjuster if needed.
Crank or other bolts keep loosening → Remove the bolt, apply thread locker (like Loctite Blue), and re-tighten to spec.
FAQs
How fast can an e-bike go? → MOD BIKES are Class 3 electric bikes, meaning their max speed is 28 mph
How far can an e-bike travel on a single charge? → On flat terrain, and with a full charge, our bikes travel for 50 miles.
Do I need a license or registration to ride an e-bike? → Most of the USA does not require a license or registration to operate Class 3 e-bikes, but some states do. Please check with your local government.
How long does it take to charge an e-bike battery? → 6-8 hours from fully depleted.
Can I ride an e-bike in the rain? → Yes, you can ride the bike in the rain, but we recommend pulling over and waiting under some cover if it is a torrential downpour or hailing.
What’s the difference between pedal assist and throttle? → When you pedal, Pedal Assist activates the motor to a certain percentage based on the mode; the throttle activates the motor without pedaling.
How long do e-bike batteries last before needing replacement? → With proper battery maintenance, a battery can last upwards of 8+ years.
Can I ride an e-bike without using the motor? → Yes, you can! The Pedal Assist can be turned off on all MOD BIKES models.
