MOD Snap-On Bench | User Guide
The newly redesigned MOD Snap-On Bench is now fully modular, offering four different assembly configurations to suit your rider’s age, weight, and riding style. It securely mounts to any MOD BIKE rear rack using our signature Snap-On system and supports riders up to 65 lbs. Whether you're outfitting a MOD Cargo with two benches for a longer seat or customizing for a single passenger, this versatile bench adapts to your needs.
In this article: You’ll fit the MOD Snap-On Bench in its different configurations and mount it securely to your MOD rear rack.
Note: The MOD Snap-On Bench mounts only to the MOD Snap-On rear rack. Maximum passenger weight is 65 lbs (29.5 kg). Always use appropriate passenger safety accessories.
This Article Applies to the Following Bikes
Difficulty
★☆ ☆ Easy
Estimated Time
30 Min
Before You Start
Tools you will need
- Adjustable Wrench (included in your bike tool kit)
- Multitool with Allen Wrenches (included in your bike tool kit)
- Bolt Tray (or any small container for screws)
Preparation
- Ensure your bike is powered off and standing securely on the kickstand.
- Lay out the bench and included hardware.
- Make sure you have good lighting and enough space to work around the front of the bike.
Steps

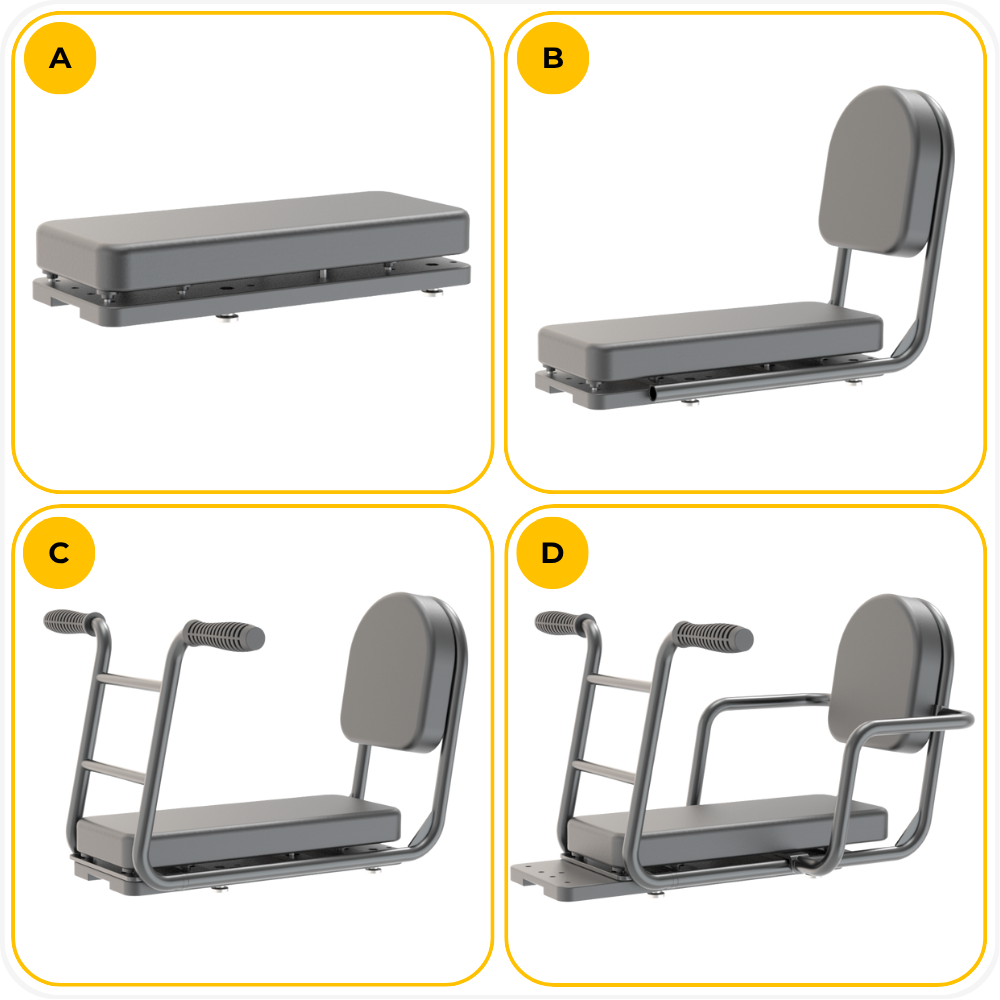

Step 1: Choose Your Configuration
Pick the setup that fits your rider’s age, weight, and riding style.
- Padded Seat Only
- Padded Seat with Backrest
- Padded Seat with Backrest, and Handlebars

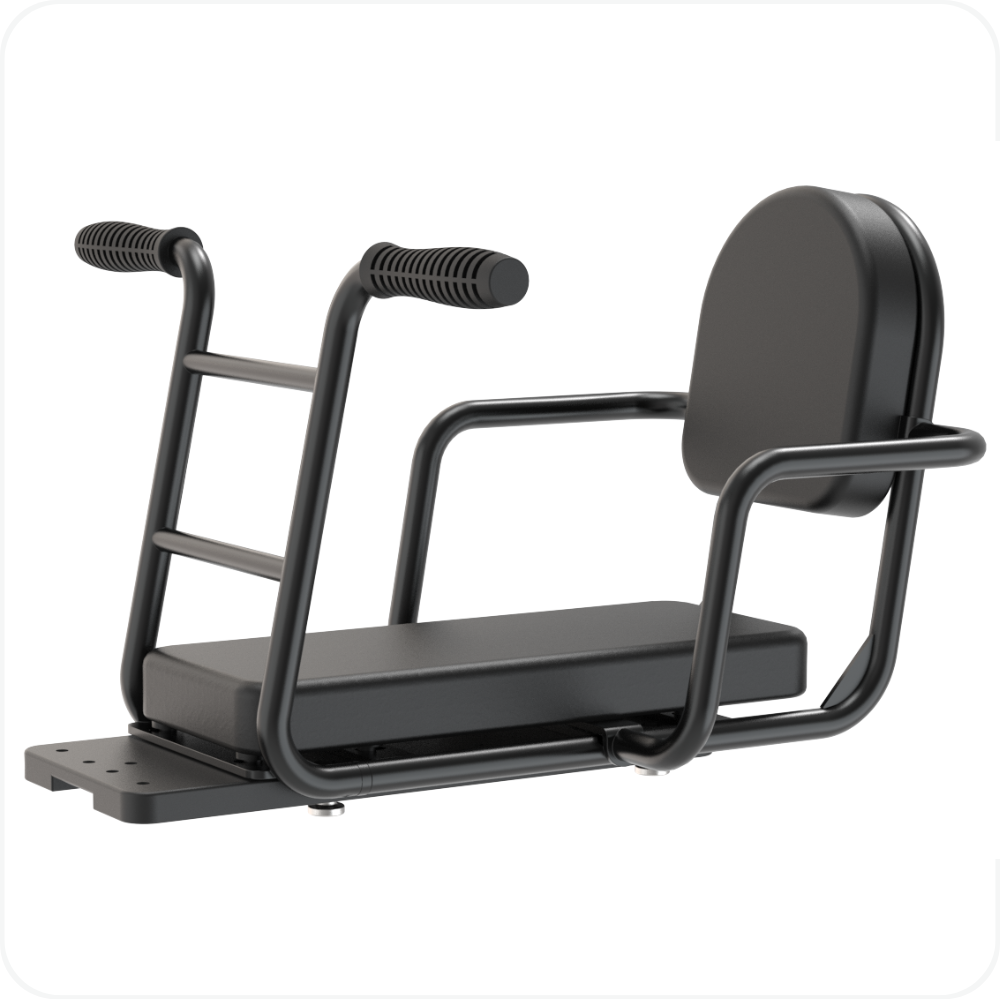

- Padded Seat with Backrest, Handlebars, and Armrest

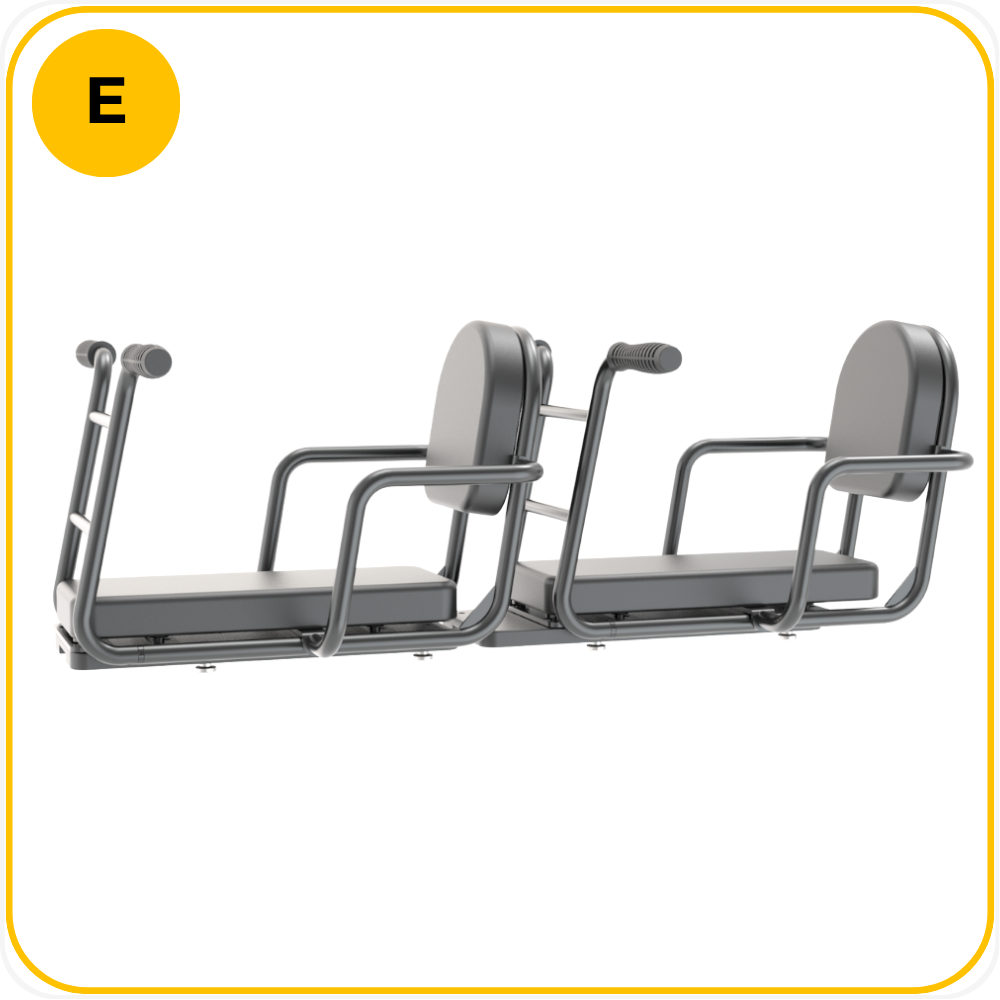

- Dual-Bench Setup (only works on MOD Cargo).
Step 2: Select the fore/aft position
Choose one of two positions based on your bike setup:

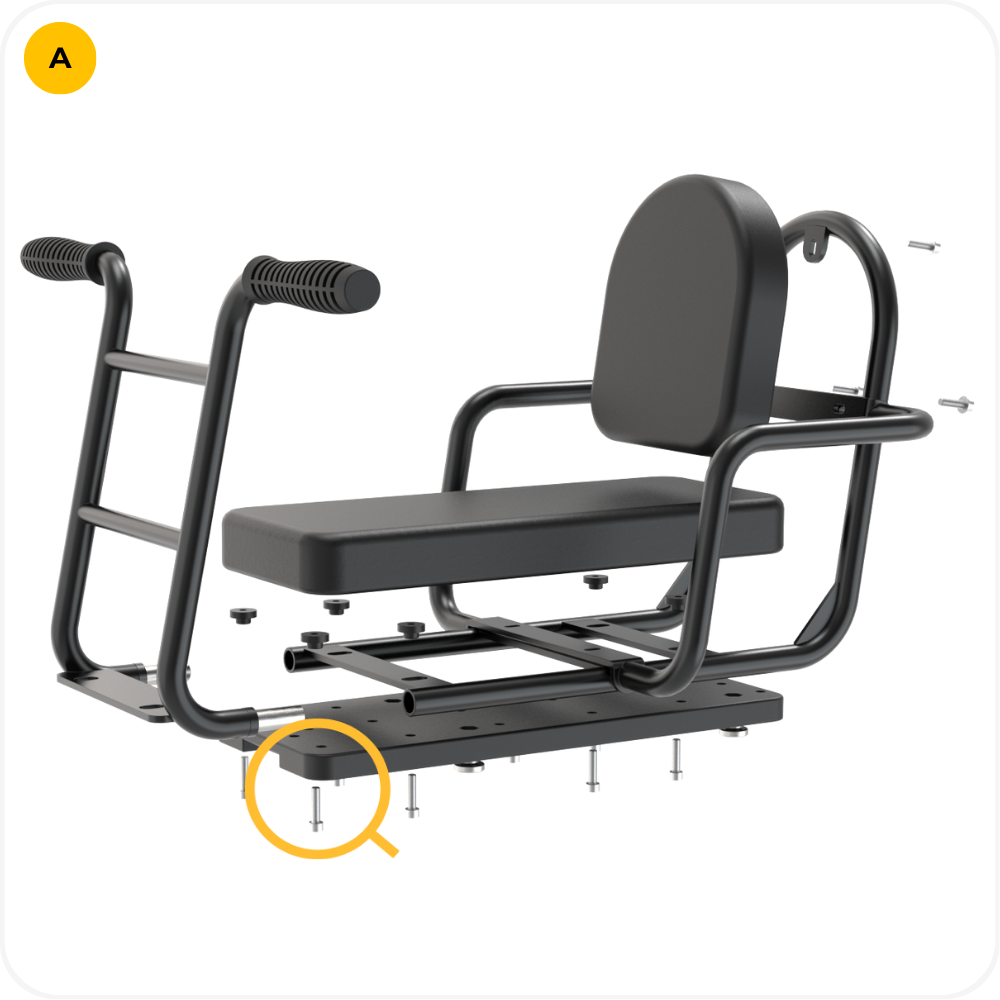

- Flat position (most bikes): Front edge of the seat aligns with the bottom plate.

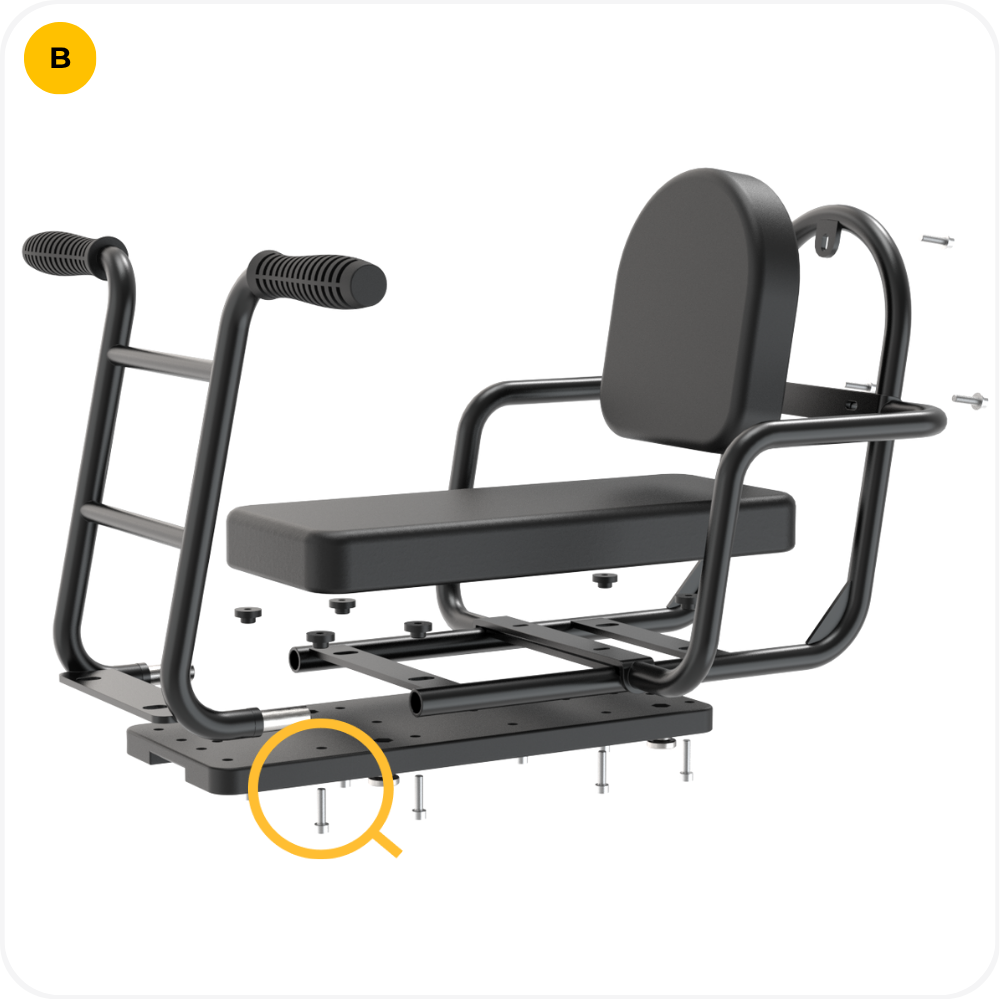

- Rear position (MOD Easy or dual-bench MOD Cargo): Seat mounts in the rearward set of holes.
Step 3: Assemble seat components

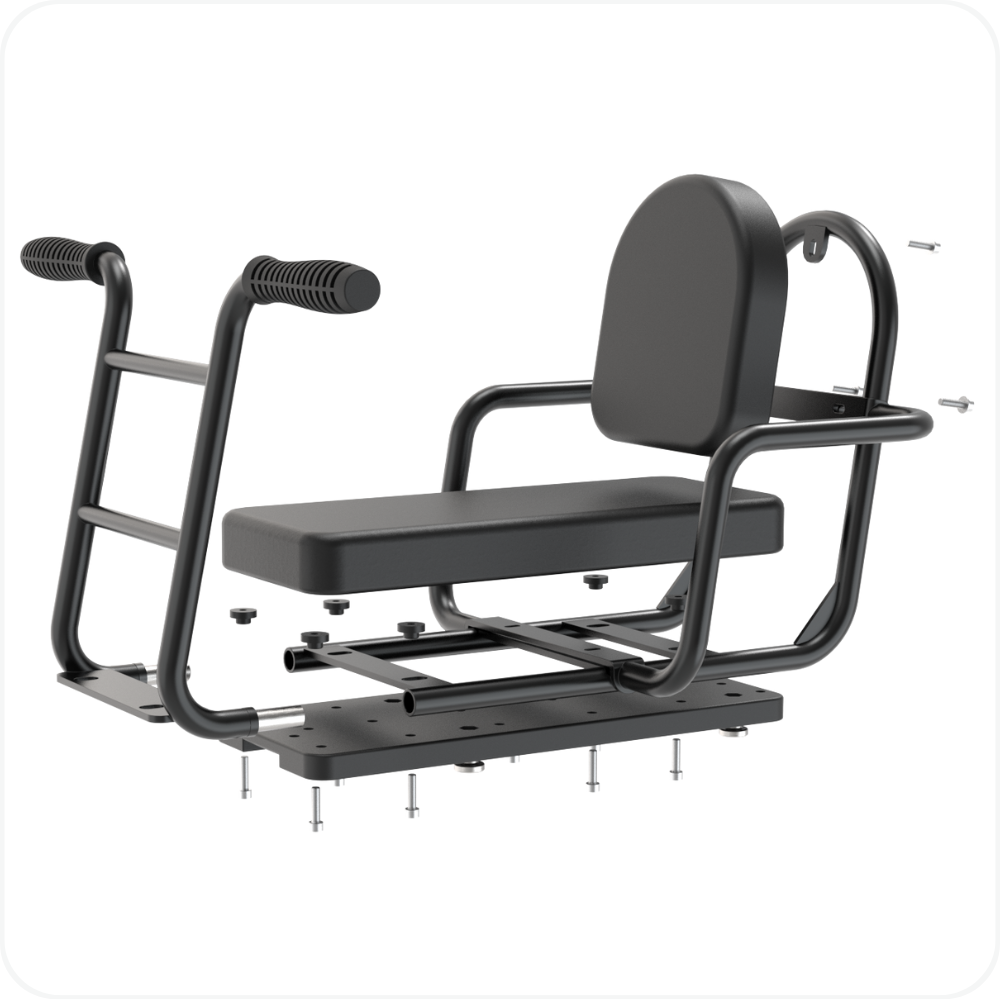

Build the seat according to your chosen configuration.
- Position components (backrest, handlebars, armrest) as shown in the kit diagrams.
- Tighten the 8 bolts on the underside of the seat with a 4mm Allen.
- If using the armrest: remove the two lower backrest bolts, place the armrest bracket underneath, and re-install/tighten.
Step 4: Fit to bike.
- With the MOD Snap-On Bench fully assembled, attach to the rack on your bike by locating the 4 bolts on the underside of the bench into the holes on the top of the rack and slide back until it clicks in place.
- Check the bench is securely held in place and the Plunger is fully engaged (as shown below).
- To remove the MOD Snap-On Bench from the rack, pull the plunger to release the lock and slide the bench forward.
Troubleshooting
- Bench won’t lock → Re-check alignment of the underside bolts with rack holes, then slide firmly until you hear/feel a click. Confirm plunger engagement.
- Seat feels loose → Retighten the eight underside bolts (4mm Allen). Remove/re-seat the bench and re-lock.
- Armrest/backrest misaligned → Loosen, re-center components, then re-tighten evenly.
⚠️ Important: Do not exceed 65 lbs passenger weight. Ensure all bolts are snug and the plunger is fully engaged before every ride.
FAQs
- Can I use the MOD Snap-On Bench on a regular rack?
No. The bench is designed only for the MOD Snap-On rear rack and cannot be fitted to other racks.
- Can I use the MOD Snap-On Bench on a bike other than a MOD Bike?
No. The MOD Snap-On rack is only available on MOD Bikes.
- What’s the maximum weight for the MOD Snap-On Bench?
65lbs (29.5 kg).
- What if my child needs somewhere to rest their feet?
Use MOD Frame Pegs or Rack Pegs for added comfort and stability.
Warning
⚠️ Important Safety & Liability Notice These instructions are provided as a general guide for MOD BIKES products. Always ensure that all screws, bolts, and fasteners are properly tightened and secured before riding. Improper assembly or maintenance may result in damage, injury, or voiding of warranty. If you are not confident performing these steps, please seek assistance from a qualified MOD BIKES technician or authorized service provider. MOD BIKES shall not be held liable for injury, damage, or loss caused by improper use, assembly, or failure to follow these guidelines. Local laws and regulations may apply.
