MOD Connect - User Guide

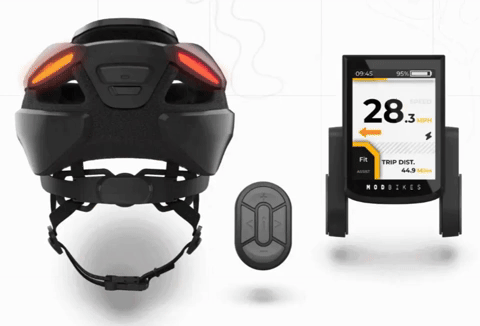

In this article, you connect your Lumos helmet to your MOD BIKE via Bluetooth, unlocking the helmet's turn signals and brake lights to enhance rider safety.

Difficulty

★☆☆ Easy

Estimated Time

5 - 10 Min

Before You Start

Tools you will need

• No Tools Needed

Preparation

• Ensure your bike is fully charged

• Ensure the Lumos helmet is fully charged

Watch the Video Tutorial

If you’d rather see the process in action, watch this 2-minute video:

Follow our MOD Connect Setup Video Guide or the steps below for a visual step-by-step of how to connect the Lumos Ultra helmet to your MOD BIKE.

Steps

Step 1: Update Helmet Firmware

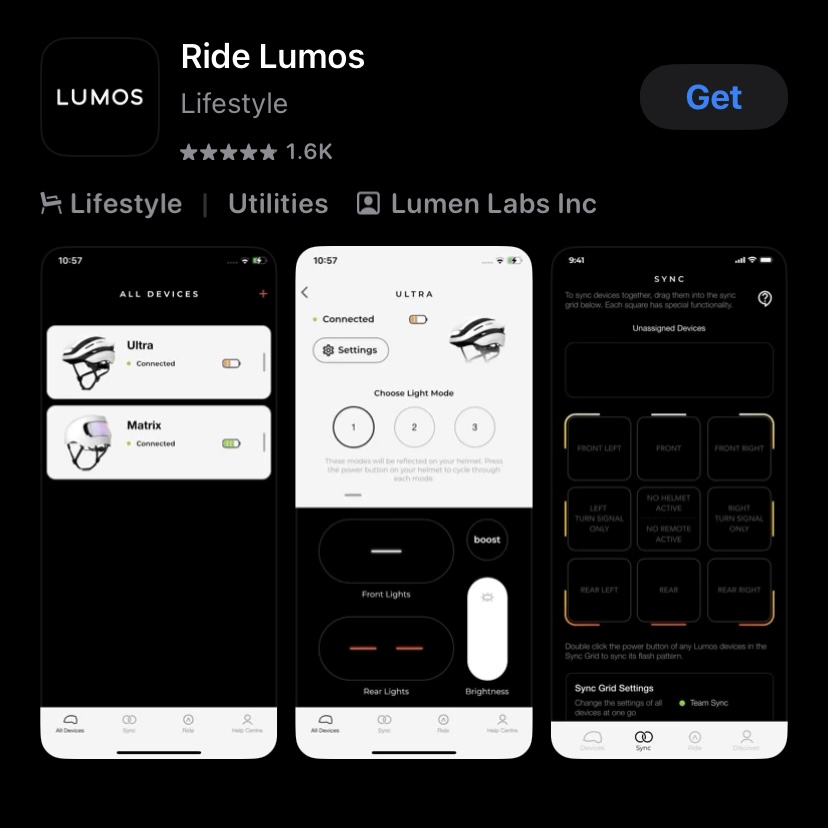

Download the Lumos Helmet app  (See Image 1)

Follow the Steps in the App & connect your helmet via Bluetooth and install the most current firmware.

Remove the Helmet from the Lumos App device

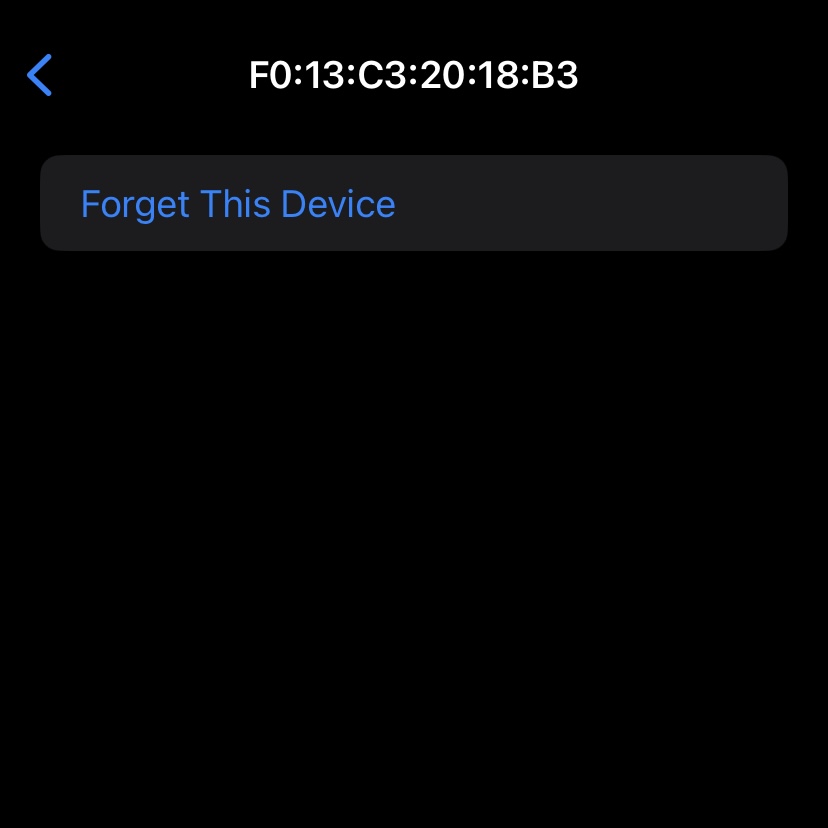

Go into your phone's Bluetooth settings and forget the device.

Step 3: Access your Settings Menu

Power on your MOD BIKE by holding down the 'i' button, and open the Settings Menu by holding the '+' and '-' buttons simultaneously for 3 seconds.

Step 4: Access the Helmet Binding Setting

By scrolling with the '+' and '-' buttons, select Setup by tapping the 'i' button and then select Bind Helmet.

Step 5: Bind your Lumos Helmet

Select Bind New Helmet and put your Lumos helmet in pairing mode by powering it on and continuing to hold the power button until the helmet's lights rapidly flash yellow.

A new helmet serial number will appear on the screen; select it to bind your helmet.

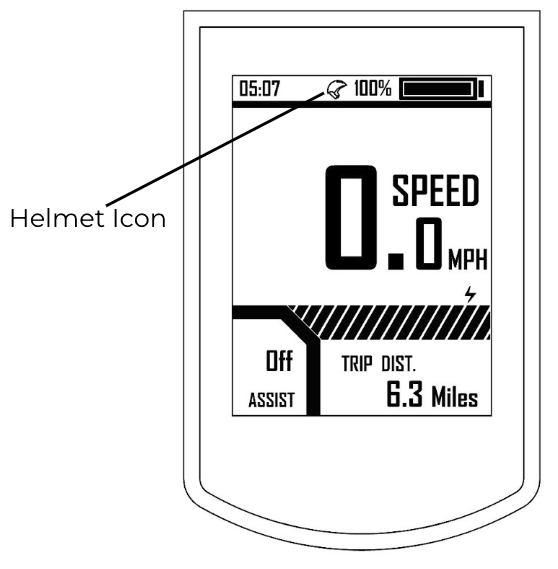

When your helmet is actively connected, you will see a Helmet Icon by your battery level indicator.

Troubleshooting

• Helmet Will Not Pair → Unsuccessful Initializing → Ensure the Helmet's Firmware is up-to-date and reattempt binding the helmet 2 - 4 times in a row.
• Intermittent Connectivity → Helmet keeps disconnecting → Return to the Bind Helmet Setting and reconnect the helmet 2 - 4 times in a row.

FAQs

• Can I use my Lumos Helmet App with my MOD BIKE? The Lumos helmet can only connect to one Bluetooth device at a time. You can only use one or the other.

• Can I connect my Lumos Helmet to earlier MOD BIKES models? Only V3 models and later have Bluetooth connectivity. Lumos helmets come with a remote control that attaches to the handlebars if you wish to use it with older models.



Still Need Help?

Click the Chat button below to create a new support ticket. A member of our team will contact you within 24 to 48 hours.

DISCLAIMER:  Do not use the Lumos App if you wish to utilize the full functionality of the MOD Connect

            **Remove / delete the helmet as a Bluetooth device from your phone once you update the Firmware.
