MOD Connect | User Guide

In this article: You will pair your Lumos Helmet with your MOD V3 to enable turn signal functionality.

This Article Applies to the Following Bikes

Difficulty

★☆☆ Easy

Estimated Time

5 - 10 Min

Before You Start

Tools you will need

• No Tools Needed

Preparation

• Ensure your bike is fully charged

• Ensure the Lumos helmet is fully charged



Watch the Video Tutorial

Prefer to watch? Check out our quick video guide:

Follow our MOD Connect Setup Video Guide or the steps below for a visual step-by-step of how to connect the Lumos Ultra helmet to your MOD BIKE.

Steps

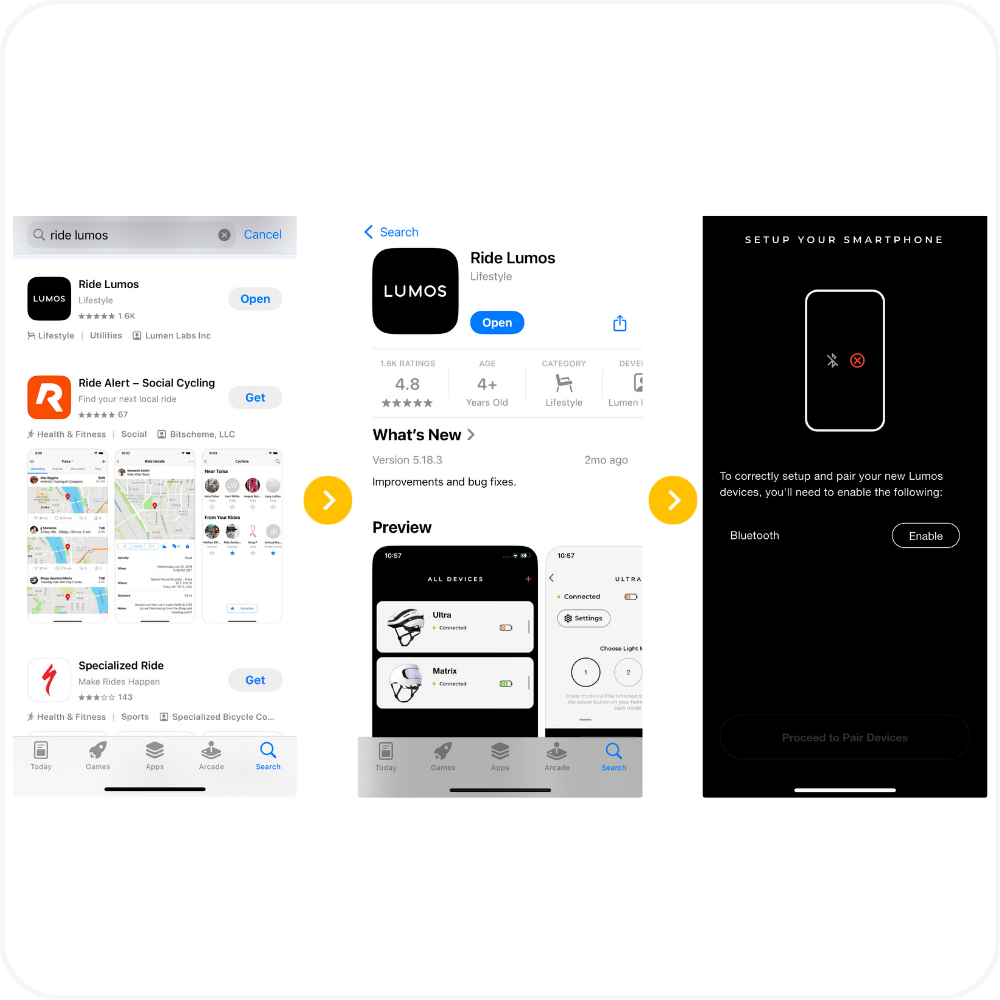

Step 1: Download and open the Lumos App

On your phone, open the App Store or Google Play, search “Ride Lumos,” install, then open.

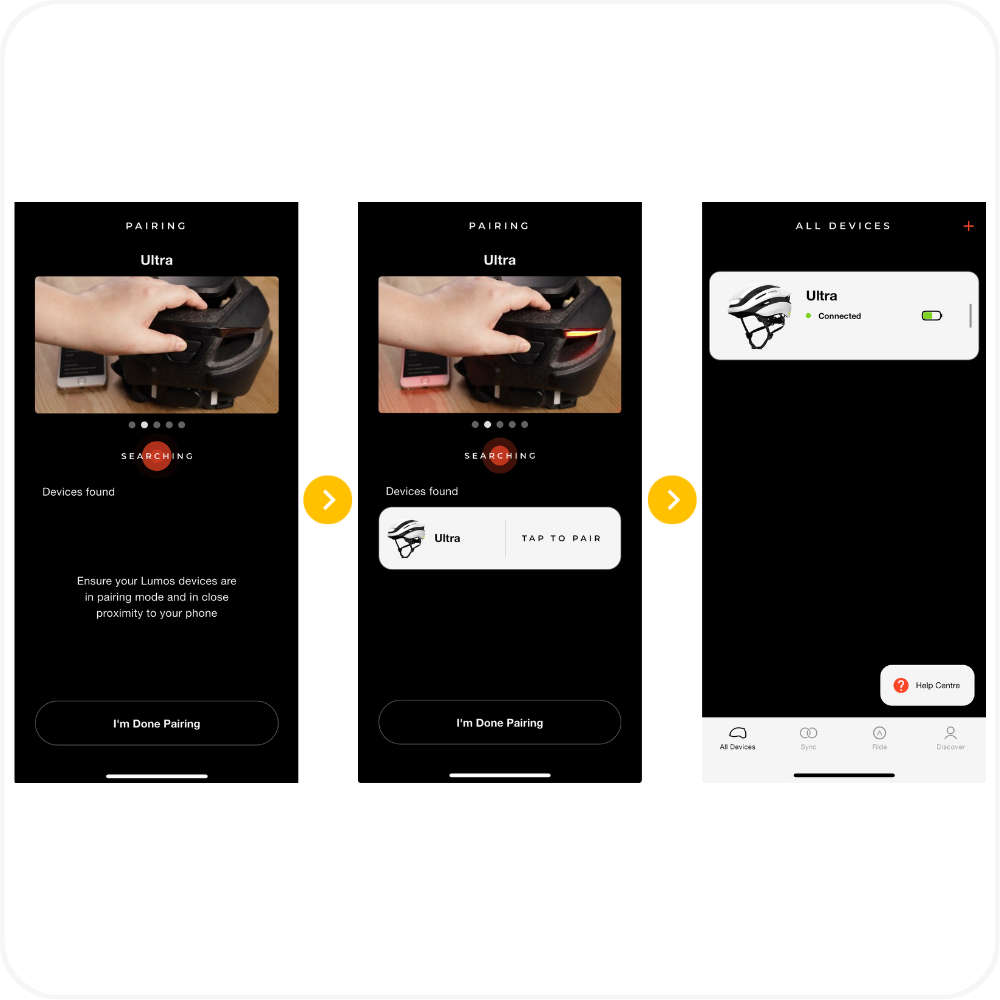

Step 2: Pair and Update Helmet Firmware

Follow the prompts until the app shows Connected. If prompted, install the firmware update to 100%, then close the Lumos App.

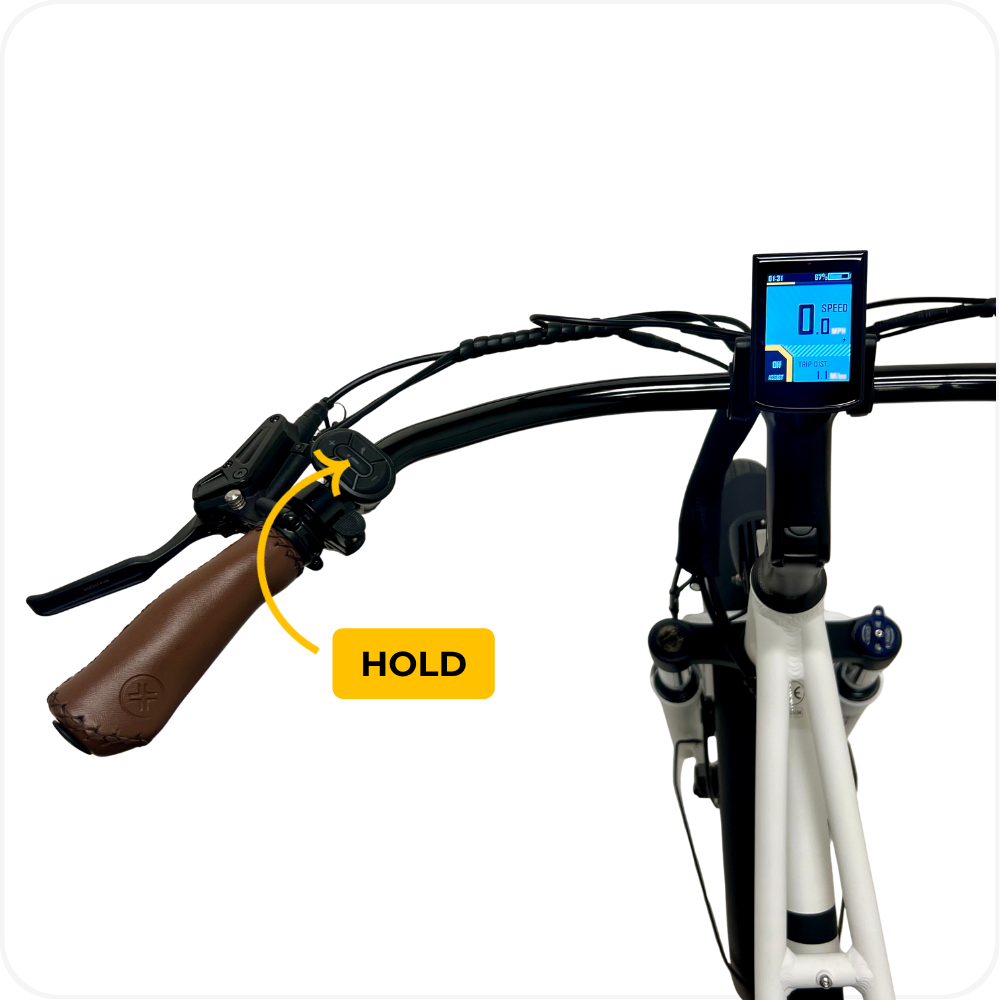

Step 3: Turn on your MOD BIKE

Press and hold the i button until the bike display powers on.

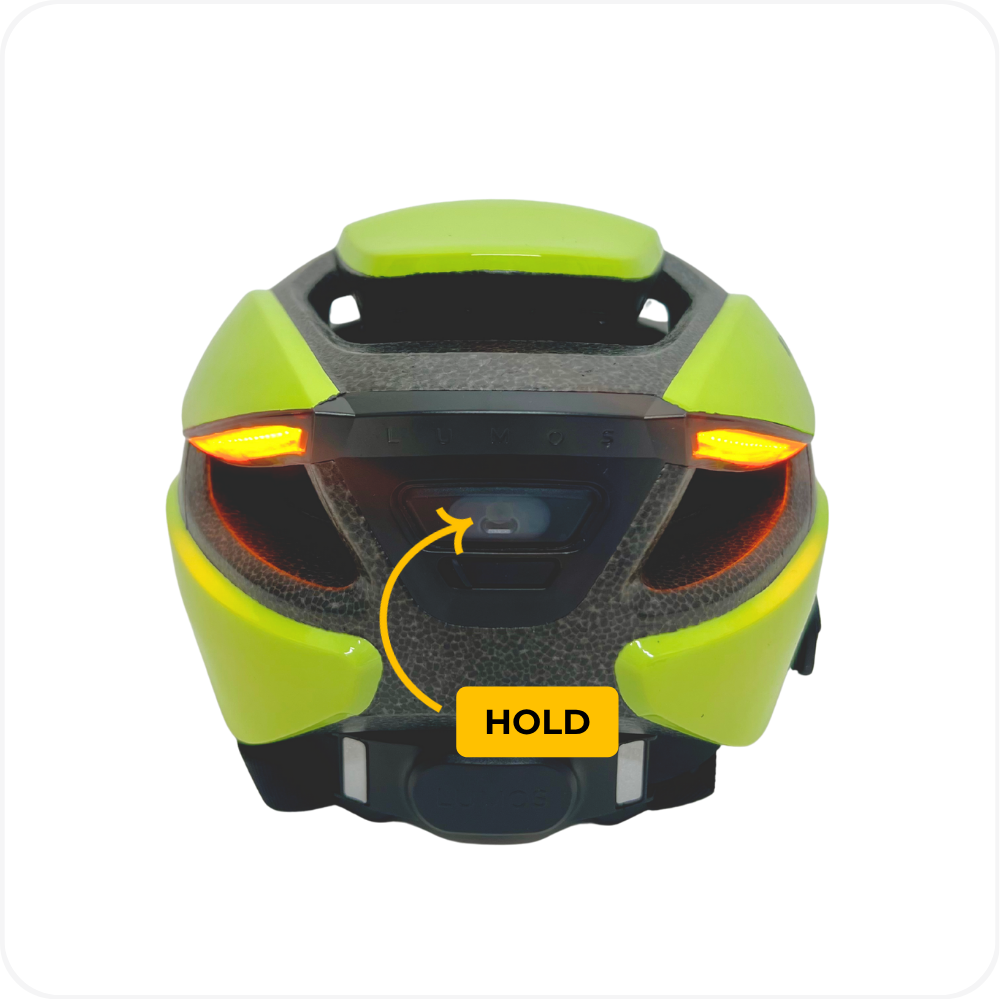

Step 4: Put the helmet in pairing mode

Press and hold the helmet power button for 3 seconds until the orange lights flash.

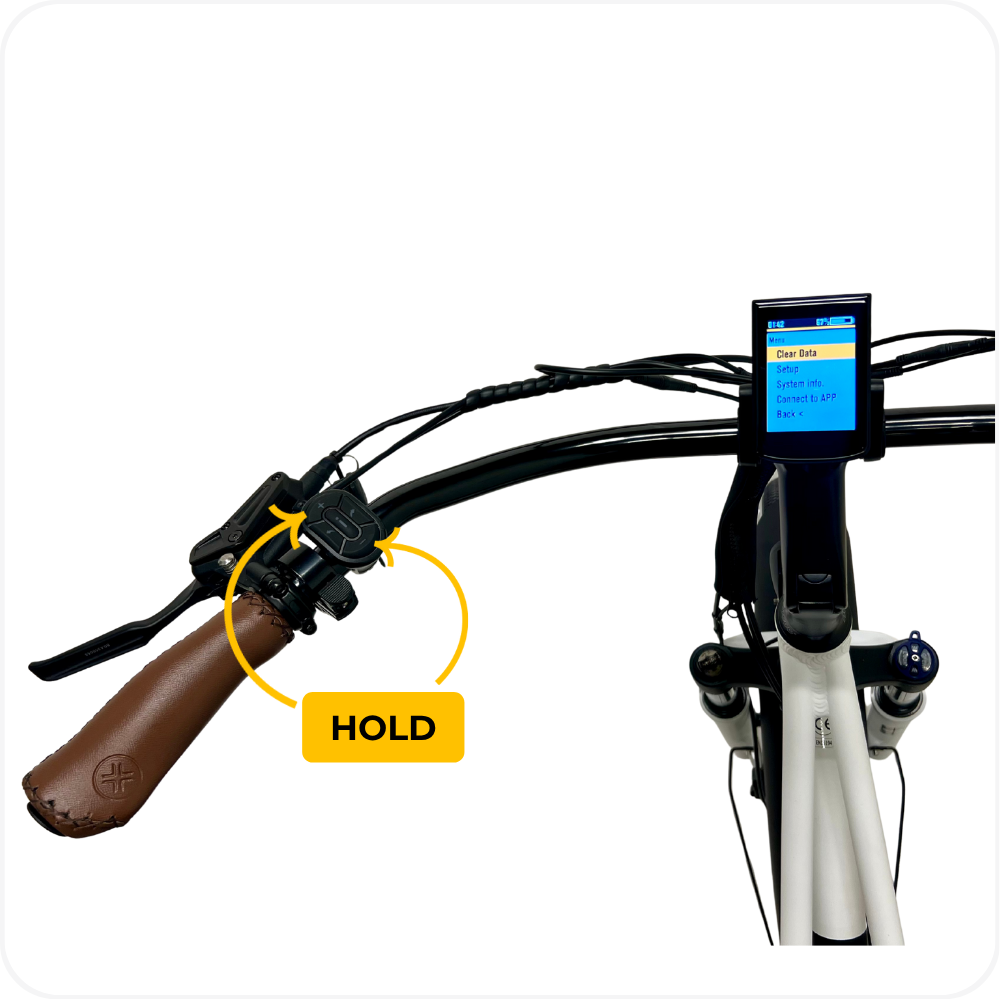

Step 5: Open the bike Menu

On the handlebar control, press + and - together to open Menu.

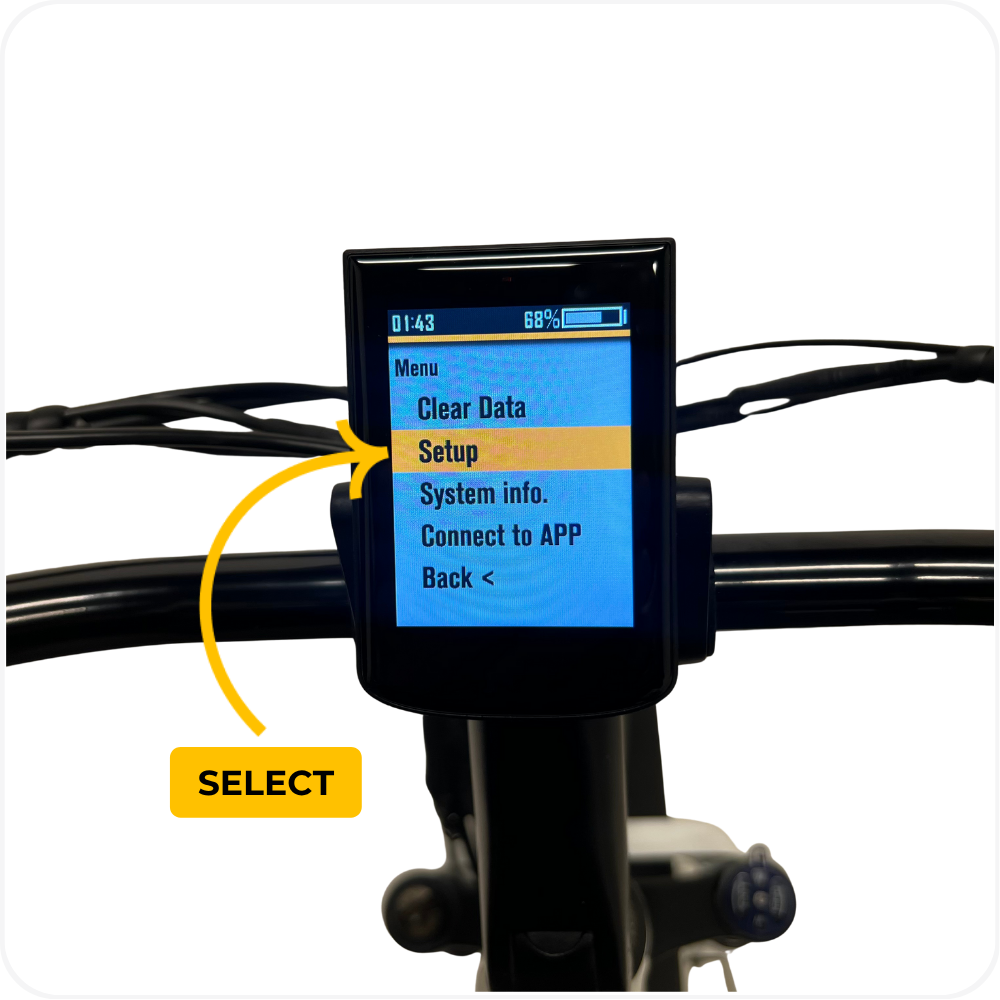

Step 6: Go to Setup

Use the controls to highlight Setup and select it.

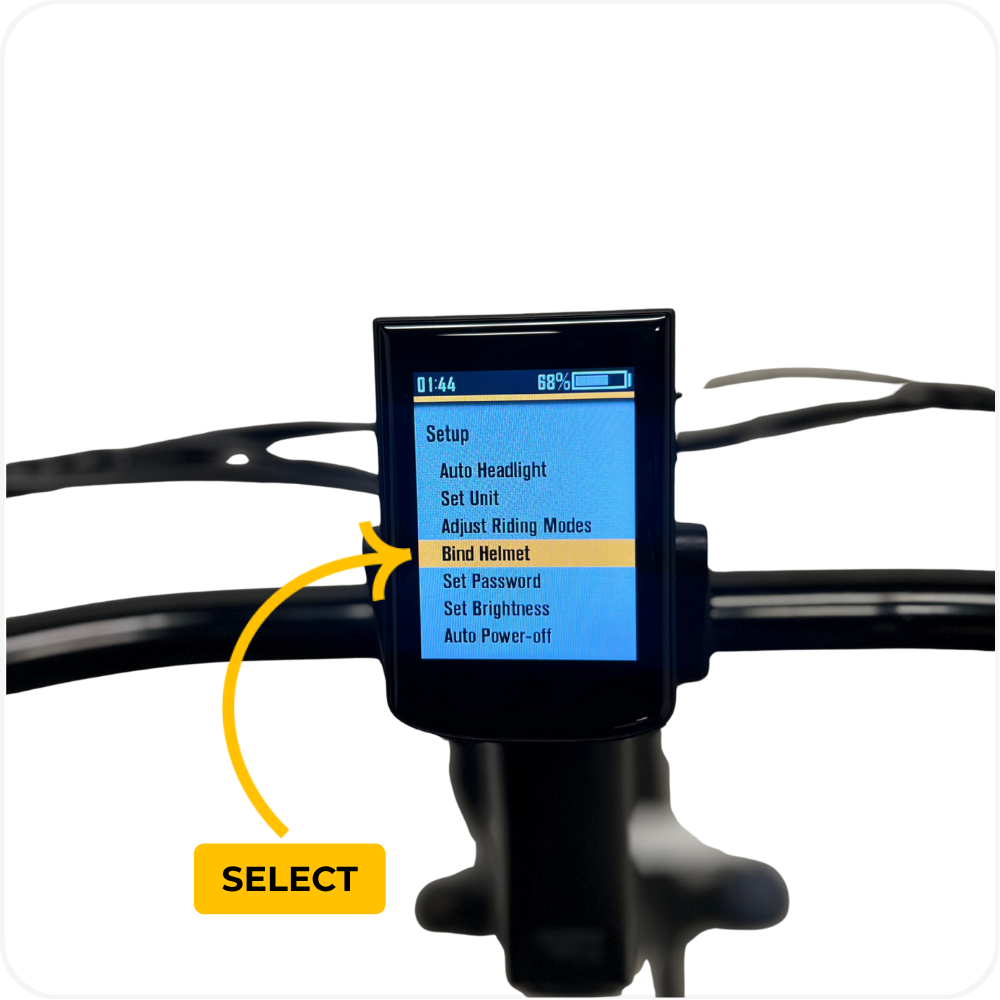

Step 7: Select Bind Helmet

In the Setup menu, choose Bind Helmet.

Step 8: Select Bind New Helmet

Choose Bind New Helmet to start scanning for helmets.

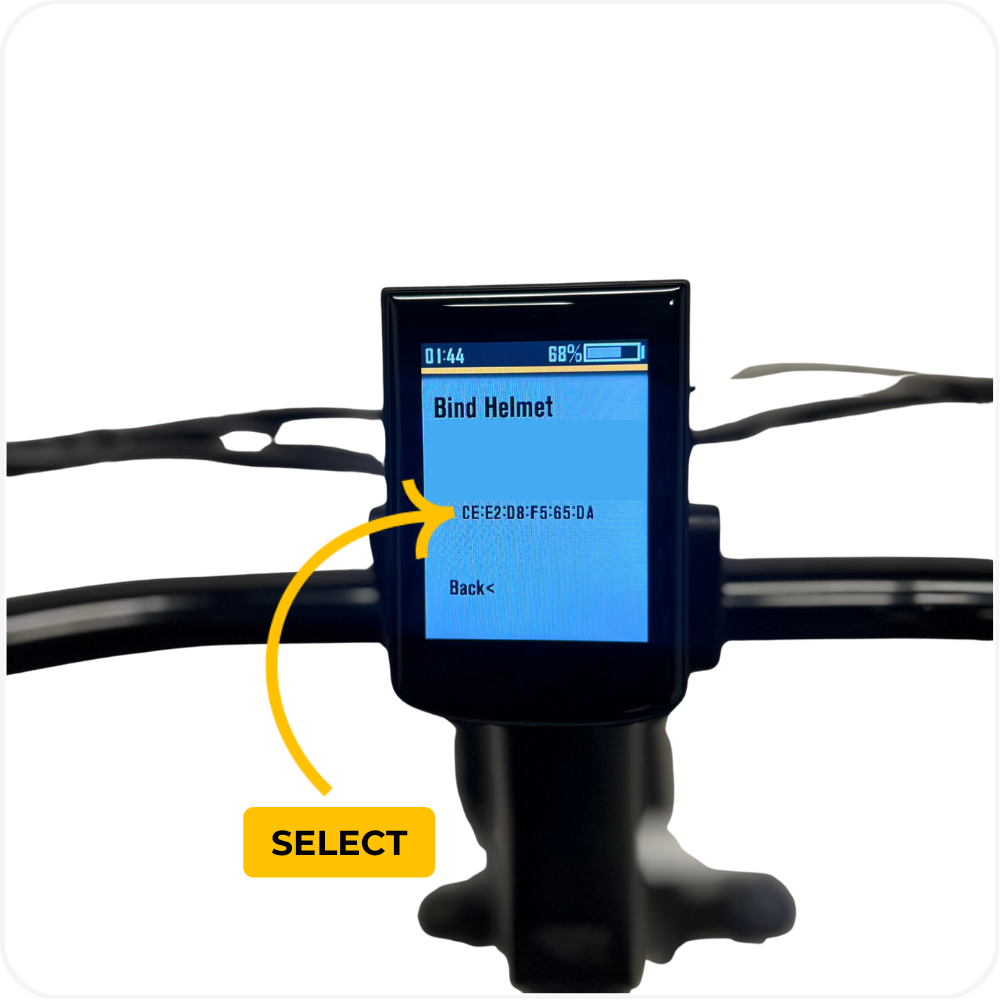

Step 9: Choose your helmet from the list

Select the serial number displayed on screen.

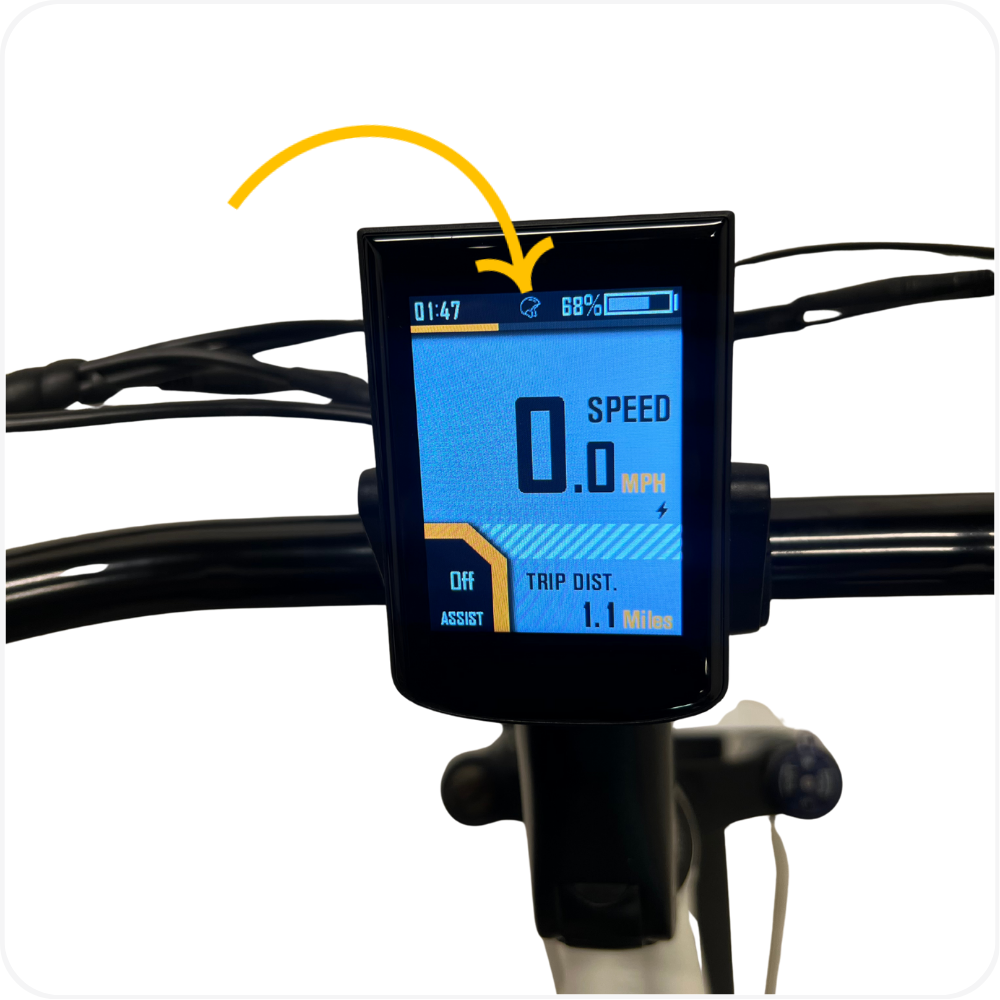

Step 10: Confirm the connection

Look for the helmet icon next to the battery level.

Troubleshooting

• Helmet will not pair / stuck on initializing → Ensure the helmet firmware is up to date. Retry binding 2–4 times.

• Intermittent connectivity → Go back to the Bind Helmet setting and reconnect 2–4 times.

⚠️ Note: The Lumos helmet can only connect to one Bluetooth device at a time. If it is still paired with your phone, your MOD Bike will not connect.

FAQs

• Can I still use the Lumos App once I connect to my MOD BIKE?
  No. The helmet can only connect to one Bluetooth device at a time. Once paired to your MOD Bike, the Lumos App must remain disconnected.

• Can I use Lumos helmets with older MOD BIKE models?
  Only V3 models and later support Bluetooth helmet pairing. For earlier models, use the included Lumos remote.
